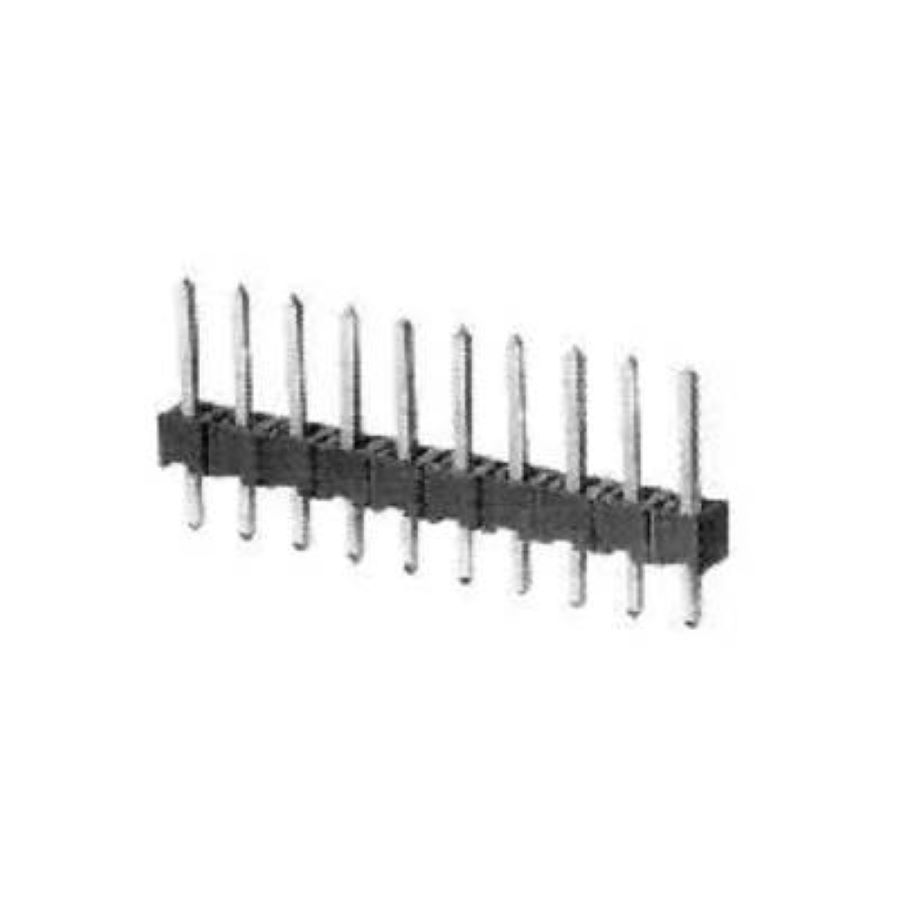

825433-9
Manufacturer:
TE Connectivity
Mfr.Part #:
825433-9
Datasheet:
Description:
Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:9 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 22.86 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Packaging | Box |
| Depth | 3.69 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 5 GΩ |
| Contact Plating | Tin, Gold |
| Lead Length | 3.19786 mm |
| Contact Material(Contact Finish) | Brass, CuZn |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| Number of Contacts | 9 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | PBT |
| Contact Style | Pin |
| Contact Current Rating | 5 A |
| Housing Color | Green |
| Keyed | No |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 2.5 µm |
| Contact Gender | Male |
| High Temperature Housing | No |
| Mating Post Length | 6.7 mm |
| Contact Shape | Square |
| High Speed Serial Data Connector | No |
| Termination Post Length | 3.2 mm |
Stock: 1735
Distributors
pcbx
pcbxUnit Price$0.96388
Ext.Price$0.96388
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96388 | $0.96388 |
| 10 | $0.81839 | $8.18390 |
| 25 | $0.77521 | $19.38025 |
| 50 | $0.73431 | $36.71550 |
| 100 | $0.69557 | $69.55700 |
| 300 | $0.65887 | $197.66100 |
| 500 | $0.62411 | $312.05500 |
| 1000 | $0.59118 | $591.18000 |
| 3000 | $0.55999 | $1679.97000 |
| 5000 | $0.53044 | $2652.20000 |
| 10000 | $0.50246 | $5024.60000 |
